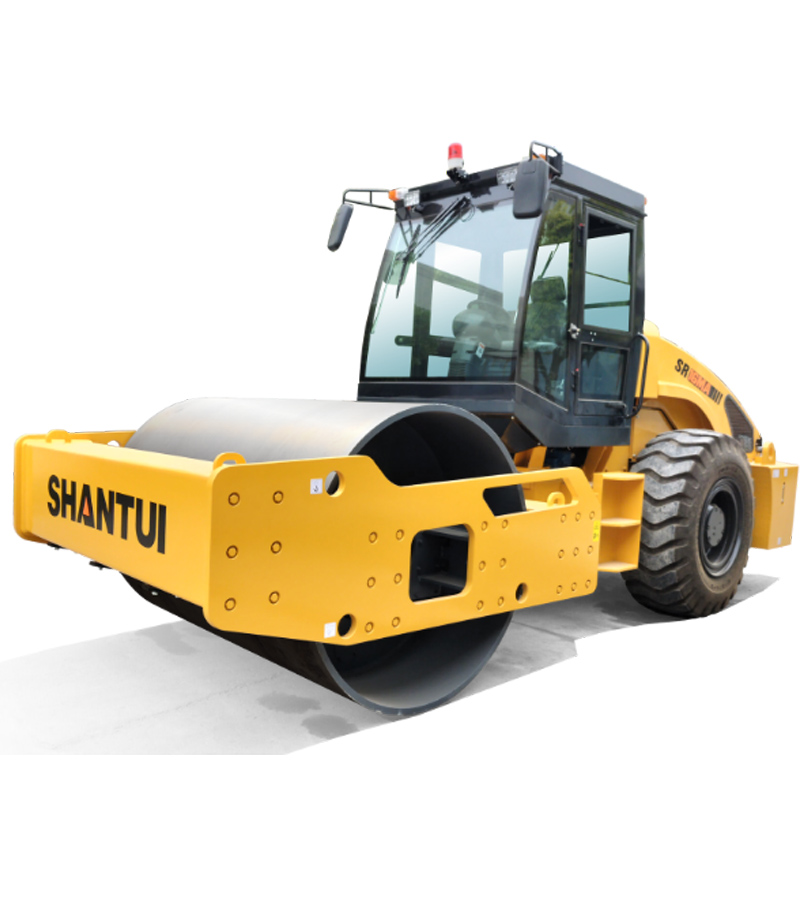

SHANTUI New 16 Ton Soil Compactor Road Roller SR16MA
Configuration Selling Point
With the mechanically-driven high-torque special gearbox for rollers integrating a synchronizer, it is light for gear shifting; the single frequency & dual amplitude, electronically-controlled delay vibration and large excitation force guarantees good compaction performance; with the hydraulic steering and articulated frame, it is light and flexible in steering;
Ease Of Maintenance And Operation Comfort
The rear hood can be opened at a large angle for easy maintenance; the standard cab can be fitted with optional dual-purpose air conditioner
Adaptability To Diverse Working Conditions
It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions
Specification
Parameter | SR16MA |
External dimensions(mm) | 6240*2280*3080 |
Engine brand | Weichai |
Power/speed(kW/rpm) | 118/2000 |
Operating weight(kg) | 16000 |
Front and rear load distribution | 8250/7750 |
Vibration frequency low/high(Hz) | 30 |
Minimum turning radius(mm) | 6500 |
Excitation force(kN) | 325/165 |
Amplitude(mm) | 1.8/0.9 |
Gradeability | 0.3 |
Speed(km/h) | For：2.5/5.0/10.5 ；Rev： 2.5/5.0 |
Emissions (Indicated as per China standards) | Eu stage II |

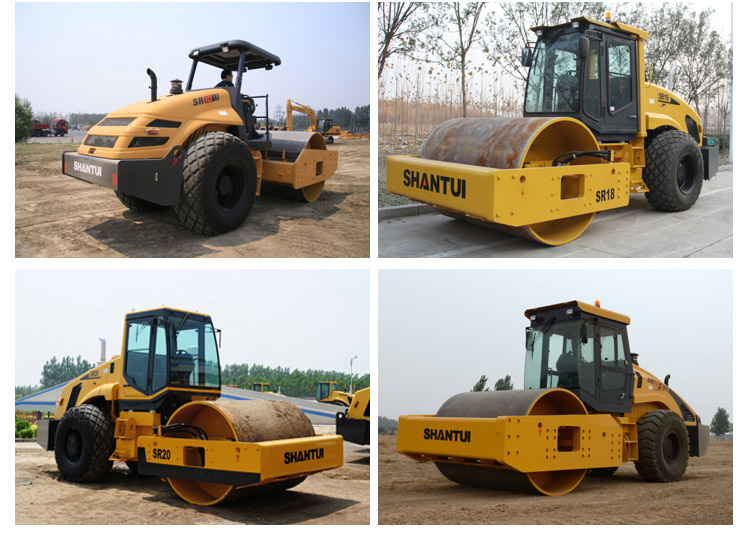

Road Roller Application Project
Packing & Delivery
We support the best suitable transportation to customer. We're pleased to get your inquiry and we will reply you as soon as post.
Company Profile
FAQ
Q1: Are you a trader or a manufacture?
A1: We are an industry and trade integration business,
Q2: How can I be sure the product is right for my machine?
A2: Please provide the part number of our product or the serial number of the machine. And we can customize for you according to drawings and sizes.
Q3: What kind terms of payment can be accepted?
A3: T/T, L/C, D/A, D/P is accepted, T/T30% as deposit, and 70% before delivery.
Q4: Which shipment you can supply?
A4: By sea, by air or by express(DHL, Fedex, TNT, UPS, EMS).
Q5: What is your delivery time please?
A5: If the goods are in stock, we can arrange delivery and transportation for you in 2-5 days. If it needs to be produced, it will take about 10-20 days.
Q6: How is the quality of the product?
A6: We have a perfect quality system to produce perfect products. And we can provide customers with products suitable for customers according to their requirements.
