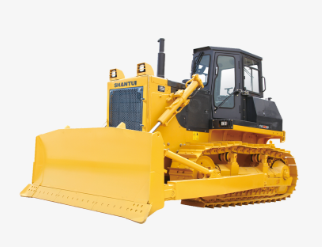

260hp Series Hydraulic Bulldozer Is Designed ToMeet Diverse Working Conditions With Different Emissions.
Configuration Selling Point
Powered by the Weichai WP12 engine and paired with Shantui's self-developed drive system, themachine delivers robust power. The four wheels and one track self-developed by Shantui ensurereliable quality and an extended service life,
Ease Of Maintenance And Operation Comfort
The working valve elements of the hydraulic system are exterally placed to facilitate easymaintenance. The hexahedral cab that is designed with ergonomic considerations provides aspacious interior, excellent visibility, and more comfortable operation.
Adaptability To Diverse Working Conditions
With its long ground contact length, large ground clearance, and stable travel, it delivers excellentpassability. Equipped with a straight tilt blade, the machine exhibits powerful cutting force, makingit well-suited for diverse working conditions, including clay, frozen soil, and sandy soil.
| Parameter | SD26 |
| Overall weight(kg) | 23450 |
| Engine brand | WEICHAI |
| Rated powerrated speed(kWV/rpm) | 206/1900 |
| Machine external dimensions(mm) | 5495*3725*3402 |
| Track center distance(mm) | 2000 |
| Ground contact length(mm) | 2730 |
| Track shoe width(mm) | 560/610/660 |
| Fuel tank capacity(L) | 450 |
| Blade type | Straight/Angle/U-shape/Semi-U |
| Blade capacity(m³) | 4.6/3.4/5.8/6.7 |
| Emissions (Indicated as per intemational standards) | Eu stageIIIA |
