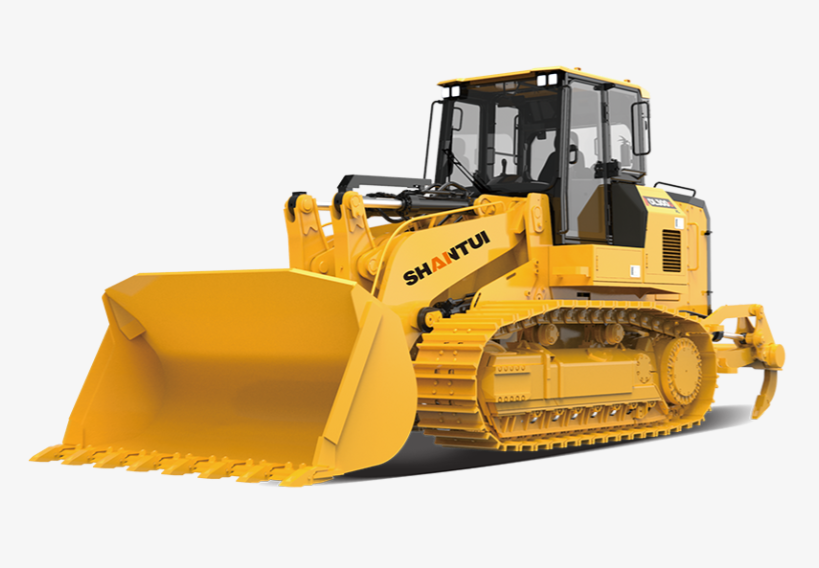

DL300 - A powerful and reliable push loader, efficient and durable.
Gonfiguration Highlights
The customized Weichai engine and Linde hydrauliccomponents form an energy - efficient and high -performance golden transmission core. The high -strengthchassis with Shantui's special "four wheels and one trackhas a long service life. The functions of automatic liftingand bucket retraction are integrated into a single button forsimple and precise operation.
Maintenance CorenienceAndOperational Comfort
The centralized arrangement of filters makes maintenanceeasy. The cab offers a wide field of view and good sealingperformance. The intelligent diagnostic system can monitorvarious parameters in real - time.
Adaptability To Multiple WorkingConditions
It integrates functions such as pushing, loading, shoveling,and transporting, and can adapt to complex workingconditions in urban underground spaces, wetlandearthworks,mines,steel plants,ship cabins, forests, andtunnels.
| Paraieter | DL300-C3 SM |
| Overall weight(kg) | 29700 |
| Engine brand | WEICHAI WP12 |
| Rated power/rated speed(kW/rpm) | 228/1900 |
| Machine external dimensions(mm) | 8105x3135x3620 |
| Track center distance(mm) | 2160 |
| Track shoe width(mm) | 660/830 |
| Ground contact length(mm) | 2945 |
| Fuel tank capacity(L) | 430 |
| Blade type | Standard |
| Blade capacity(m³) | 3.2 |
| Emissions (Indicated as per international standards) | China lII |
